Intrinsically safe devices
Описание изображения

ARG-WL8Ex-O

Wireless intrinsically safe optical smoke detector


The wireless optical smoke detector samples the air in the protected area to provide the earliest warning of fire and yet offers a high level of false alarm rejection.

FEATURES:
  • Adjustable sensitivity – low, normal or high
  • Bi-directional wireless communication
  • Fully intelligent
  • 10 years of battery life
  • Self-optimizing wireless frequency and amplitude algorithms
  • The patented design of smoke inlet to the optical chamber
  • Operating temperature range: –30 °C to +55 °C
  • IEC classification: 0Ex ia op is IIC T6 Ga X

ARG-WL8Ex-O.pdf

Размер файла: 108.67 кб

Скачать

ARG-WL8-O, -H & -OH wireless fire sensors

Обработка видео...

Описание изображения

ARG-WL8Ex-H

Wireless intrinsically safe heat detector


The wireless intrinsically safe heat detector continuously samples the temperature in the protected area to provide the earliest warning of fire and yet offers a high level of false alarm rejection.

FEATURES:
  • Maximum, differential, maximum-differential thermal channel
  • Bi-directional wireless communication
  • IEC classification: 0Ex ia op is IIC T6 Ga X
  • Self-optimizing wireless frequency and amplitude algorithms
  • 10 years of battery life
  • 5 years product warranty

ARG-WL8Ex-H.pdf

Размер файла: 160.60 кб

Скачать

ARG-WL8-O, -H & -OH wireless fire sensors

Обработка видео...

Описание изображения

ARG-WL8Ex-OH

Wireless intrinsically safe multi-criteria detector


The wireless intrinsically safe multi-criteria detector continuously samples the air and the temperature in the protected area to provide the earliest warning of fire and yet offers a high level of false alarm rejection.

FEATURES:
  • Adjustable sensitivity – low, normal or high
  • Maximum, differential, maximum-differential thermal channel
  • Bi-directional wireless communication
  • IEC classification: 0Ex ia op is IIC T6 Ga X
  • 10 years of battery life
  • 5 years product warranty

ARG-WL8Ex-OH.pdf

Размер файла: 166.63 кб

Скачать

ARG-WL8-O, -H & -OH wireless fire sensors

Обработка видео...

Описание изображения

ARG-WL8Ex-CP

Wireless intrinsically safe manual call point


The wireless intrinsically safe manual call point is a fully intelligent device which is compatible with all Streletz Translator and Expander Modules. The unit has a resettable plastic element, which displays a drop down warning flag when operated. A key is supplied with the MCP for reset and case opening.

FEATURES:
  • Bi-directional wireless communication
  • IEC classification: 0Ex ia IIС T6 Ga X / Eх ta ia IIIC T(200)50°C Da X
  • Self-optimizing wireless frequency and amplitude algorithms
  • 10 years of battery life
  • 5 years product warranty

ARG-WL8Ex-CP.pdf

Размер файла: 114.49 кб

Скачать

ARG-WL8-CP wireless manual call point

Обработка видео...

Описание изображения

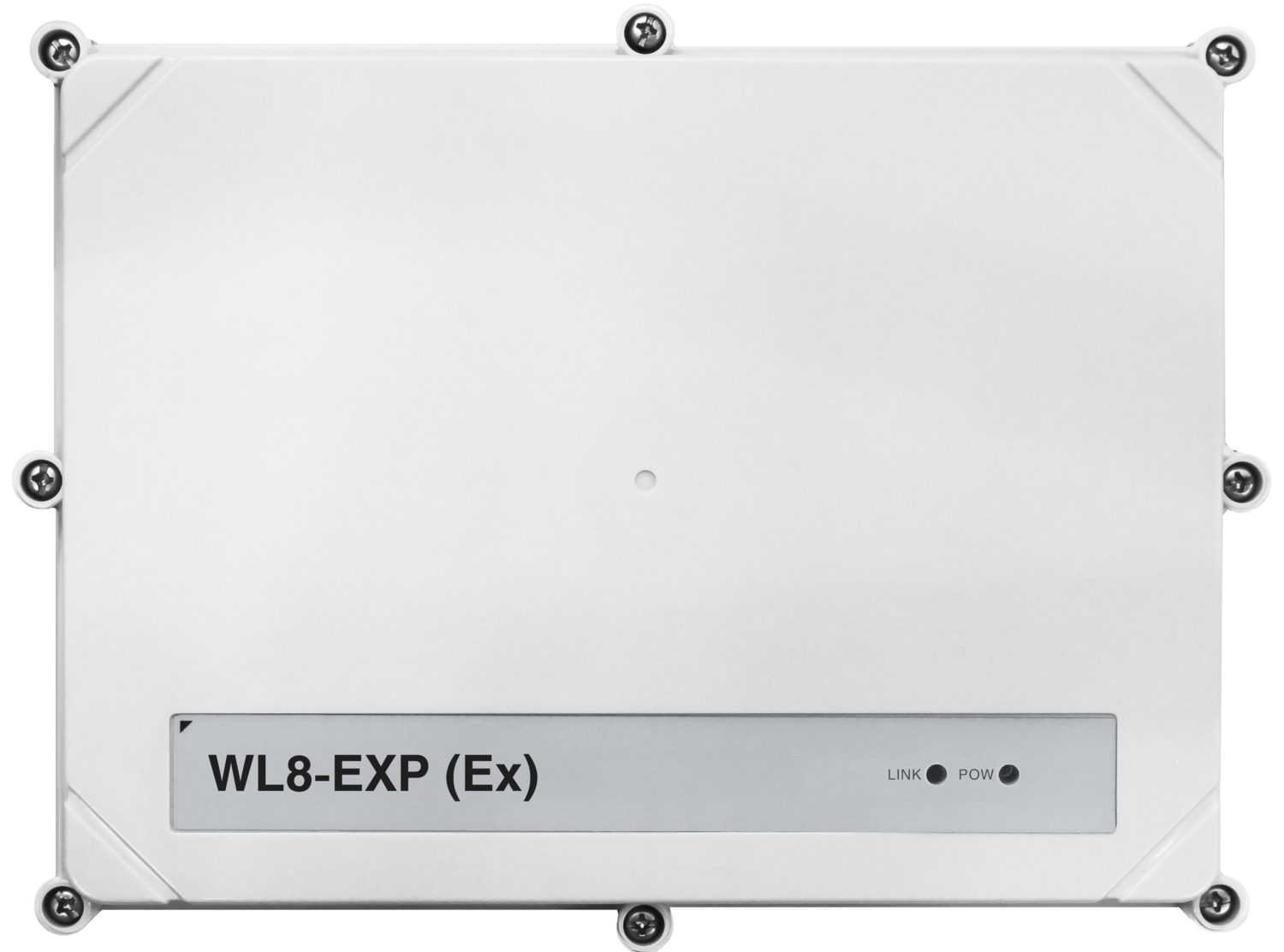

ARG-WL8Ex-EXP

Wireless intrinsically safe expander module


The wireless intrinsically safe expander module compatible with ARG-WL8-TRV wireless translator module. The unit provides a convenient method to increase radiocommunication range beyond that possible from a single translator by relaying the radio communication to further expanders or directly to the wireless field devices. This functionality makes it possible to build large fully wireless systems or add wireless devices into areas where cabling for translators is difficult or impossible. All expanders are fully monitored ensuring the highest levels of life safety and reliability are maintained. Using well-proven wireless technology and an orthogonal antenna design ensures the highest levels of life safety and system reliability.

FEATURES:
  • Dynamic routing for all expanders and field devices
  • Bi-directional wireless communication
  • IEC classification: 0 Ex ia IIC T6 Ga X / Ex ta ia IIIC T(200)80°C Da X
  • Compatible with up to 256 field devices
  • Supports full device intelligence
  • Ingress protection rating – IP65
  • 5 years product warranty

ARG-WL8Ex-EXP.pdf

Размер файла: 108.95 кб

Скачать

Описание изображения

ARG-WL8Ex-FL

Wireless intrinsically safe flame detector


The wireless intrinsically safe flame detector monitors the protected area and provides early detection of an open fire. An alarm message is sent to the control panel through its wire to wireless translator module and, eventually, one or more wireless expander modules.

FEATURES:
  • Bi-directional wireless communication
  • IEC classification: 0Ex ia IIС T6 Ga X / Eх ta ia IIIC Т(200)80°С Da X
  • Operation range 25 meters
  • Dual sensor
  • Self-optimizing wireless frequency and amplitude algorithms
  • 5 years product warranty

ARG-WL8Ex-FL.pdf

Размер файла: 93.99 кб

Скачать
