Input / Output modules

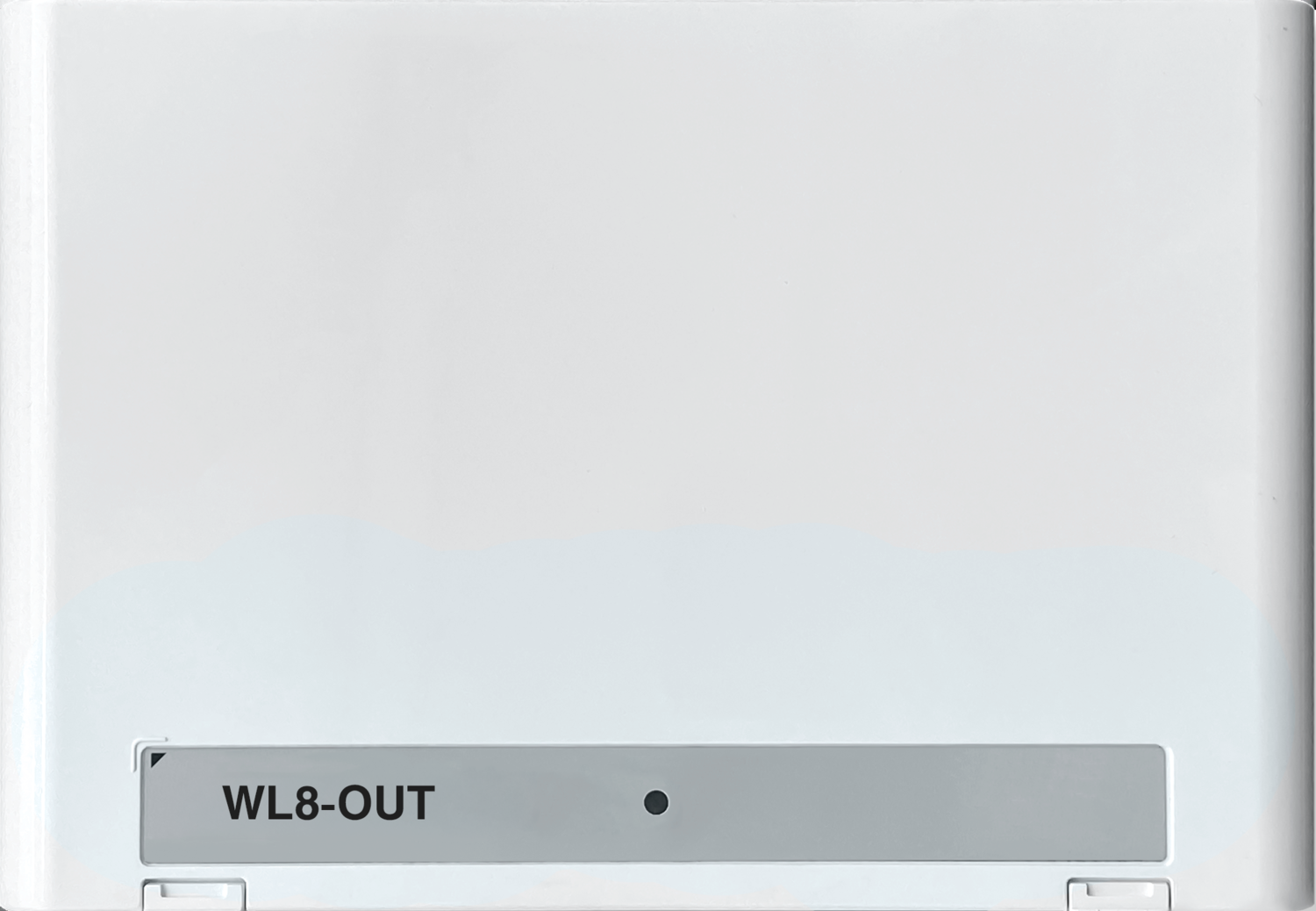

WL8-OUT
Wireless single output module

The wireless single output module WL8-OUT is designed to control fire safety equipment, annunciators, and other actuators in the security system. It provides a relay output for controlling connected devices and inputs for monitoring the status and fault conditions of automation equipment.

FEATURES:
Activation of an alert on any of the following events: "Alarm", "Fire", "Fault", "Tamper", "Disarming"
External device fault control and line monitoring
Bi-directional wireless communication
10 years of battery life
Self-optimizing wireless frequency and amplitude algorithms
5 years product warranty

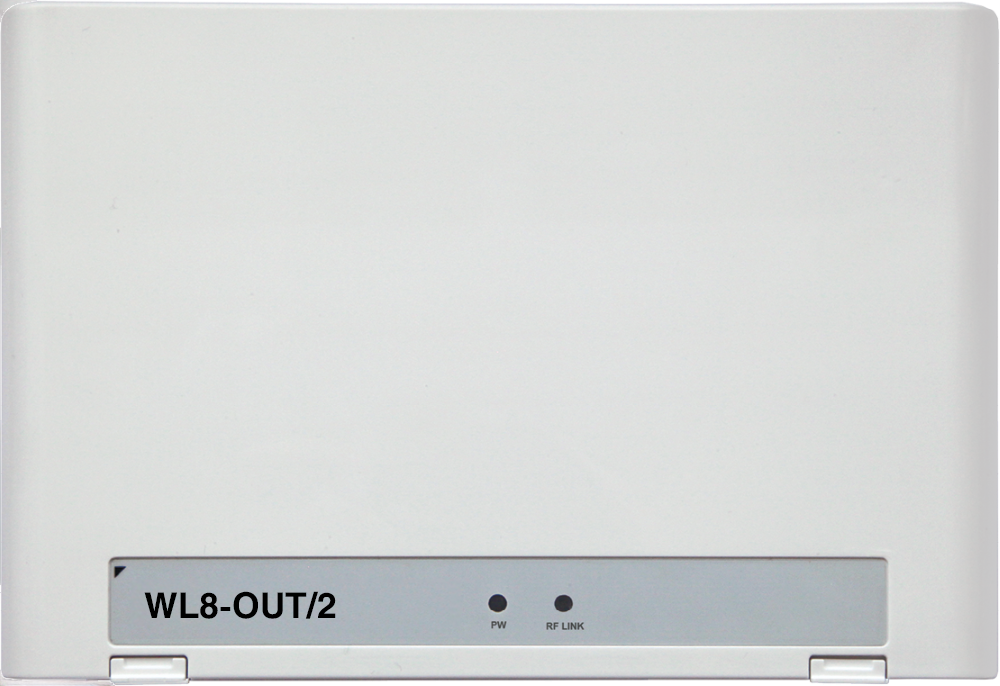

WL8-OUT/2
Wireless single output module

The wireless single output module WL8-OUT/2 is designed to control fire safety equipment, annunciators, and other actuators by supplying power to connected devices. It provides a voltage output for activating equipment such as light annunciators and audible sounders.

FEATURES:
Activation of an alert on any of the following events: "Alarm", "Fire", "Fault", "Tamper", "Disarming"
External device fault control and line monitoring
Bi-directional wireless communication
10 years of battery life
Self-optimizing wireless frequency and amplitude algorithms
5 years product warranty

WL8-IN
Wireless single input module

The wireless single input module WL8-IN monitors one input circuit and transmits input status information to the control panel. It can be used with external devices, including magnetic detectors for monitoring the opening of protected doors and windows.

FEATURES:
Programmable input for fire and security detectors, emergency button or specialized detectors
Bi-directional wireless communication
Fully intelligent
Self-optimizing wireless frequency and amplitude algorithms
10 years of battery life
5 years product warranty

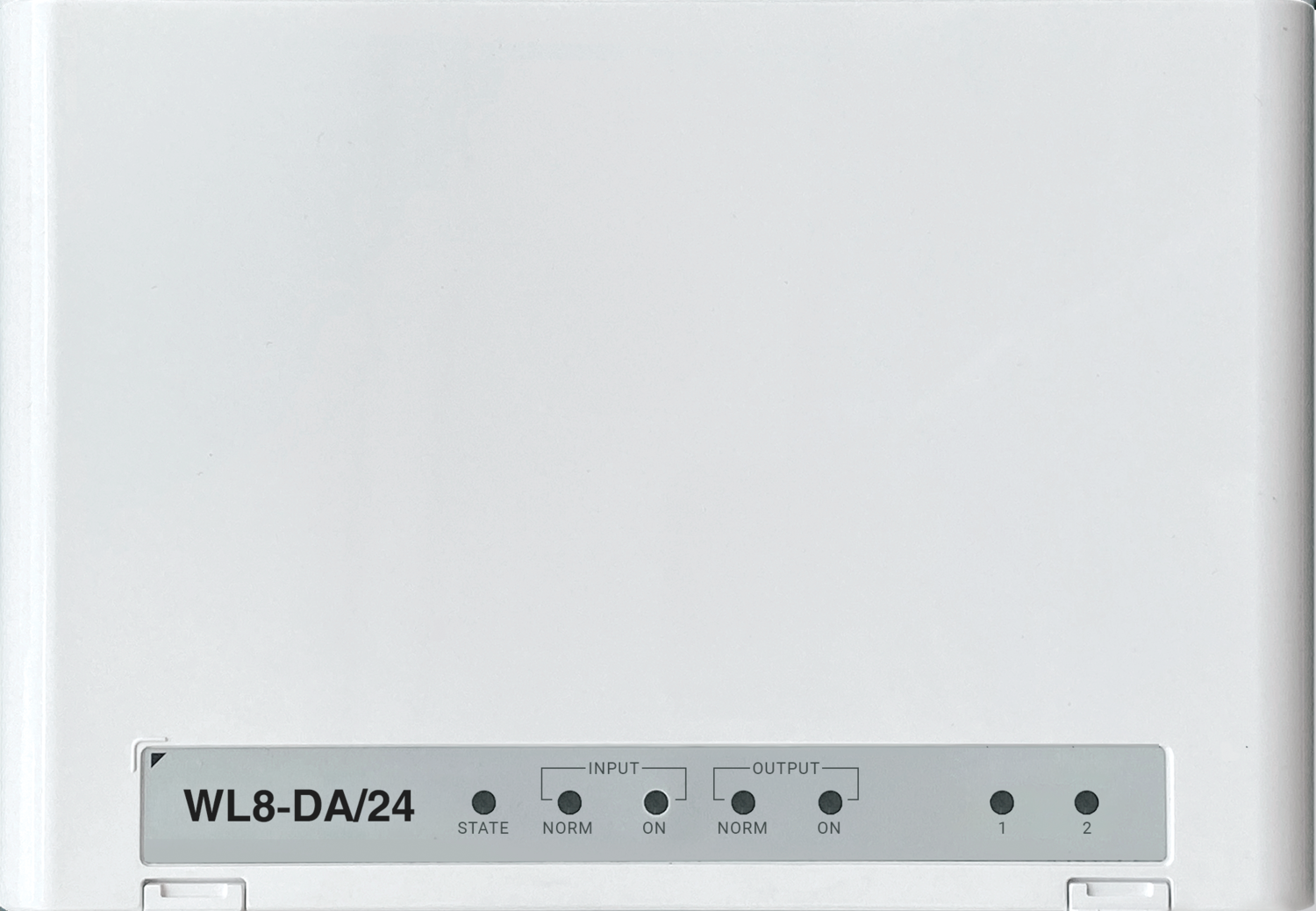

WL8-DA/24, WL8-DA/220
Wireless output modules for fire damper actuators

The wireless output modules for fire damper actuators WL8-DA/24 and WL8-DA/220 provide control of fire damper actuators while monitoring damper position and actuator fault conditions.

FEATURES:
Activation of an alert on any of the following events: "Alarm", "Fire", "Fault", "Tamper"
Two versions for ~ 220V or = 24V
Programmable modes for different types of dampers
Monitors the actuator and power circuits
4 inputs for monitoring the state of the damper
Bi-directional wireless communication
Fully intelligent
Self-optimizing wireless frequency and amplitude algorithms
10 years of battery life
5 years product warranty

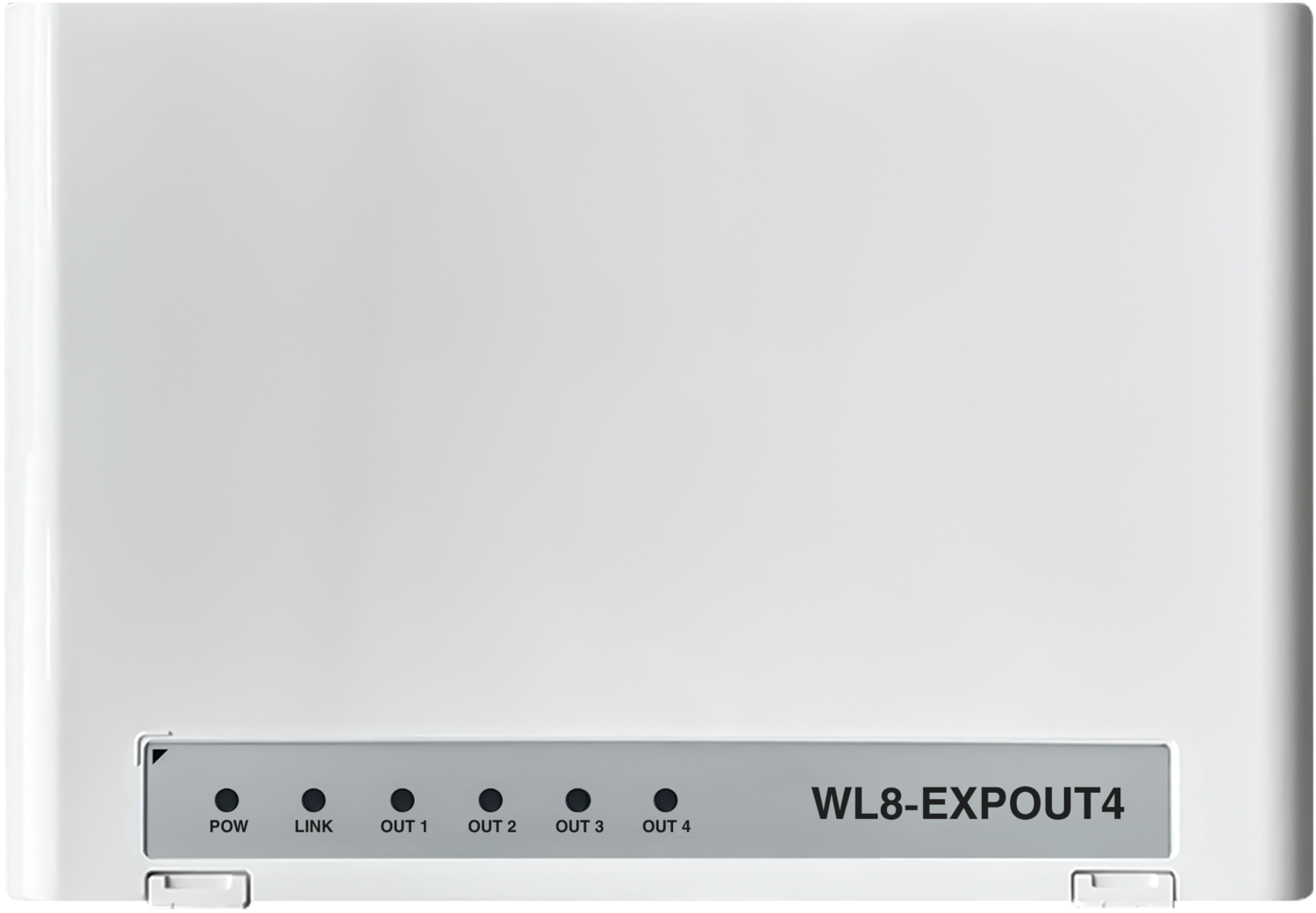

WL8-EXPOUT4
Wireless 4-output module with expander module

The wireless four-output module with expander module WL8-EXPOUT4 is designed to control fire safety equipment, annunciators, and other actuators in the security system. It provides four relay outputs for controlling connected devices and enables monitoring and control of automation equipment.

FEATURES:
Activation of an alert on any of the following events: "Alarm", "Fire", "Fault", "Tamper", "Disarming"
Bi-directional wireless communication
Fully intelligent
Self-optimizing wireless frequency and amplitude algorithms
10 years of battery life
5 years product warranty

WL8-EXPOUT4/2
Wireless 4-output module with expander module

The wireless four-output module with expander module WL8-EXPOUT4/2 is designed to control fire safety equipment, annunciators, and other actuators by supplying power to connected devices. It provides four voltage outputs for activating equipment such as light annunciators and audible sounders.

FEATURES:
Activation of an alert on any of the following events: "Alarm", "Fire", "Fault", "Tamper", "Disarming"
External device fault control and line monitoring
Bi-directional wireless communication
Fully intelligent
Self-optimizing wireless frequency and amplitude algorithms
10 years of battery life
5 years product warranty
