Input / Output modules

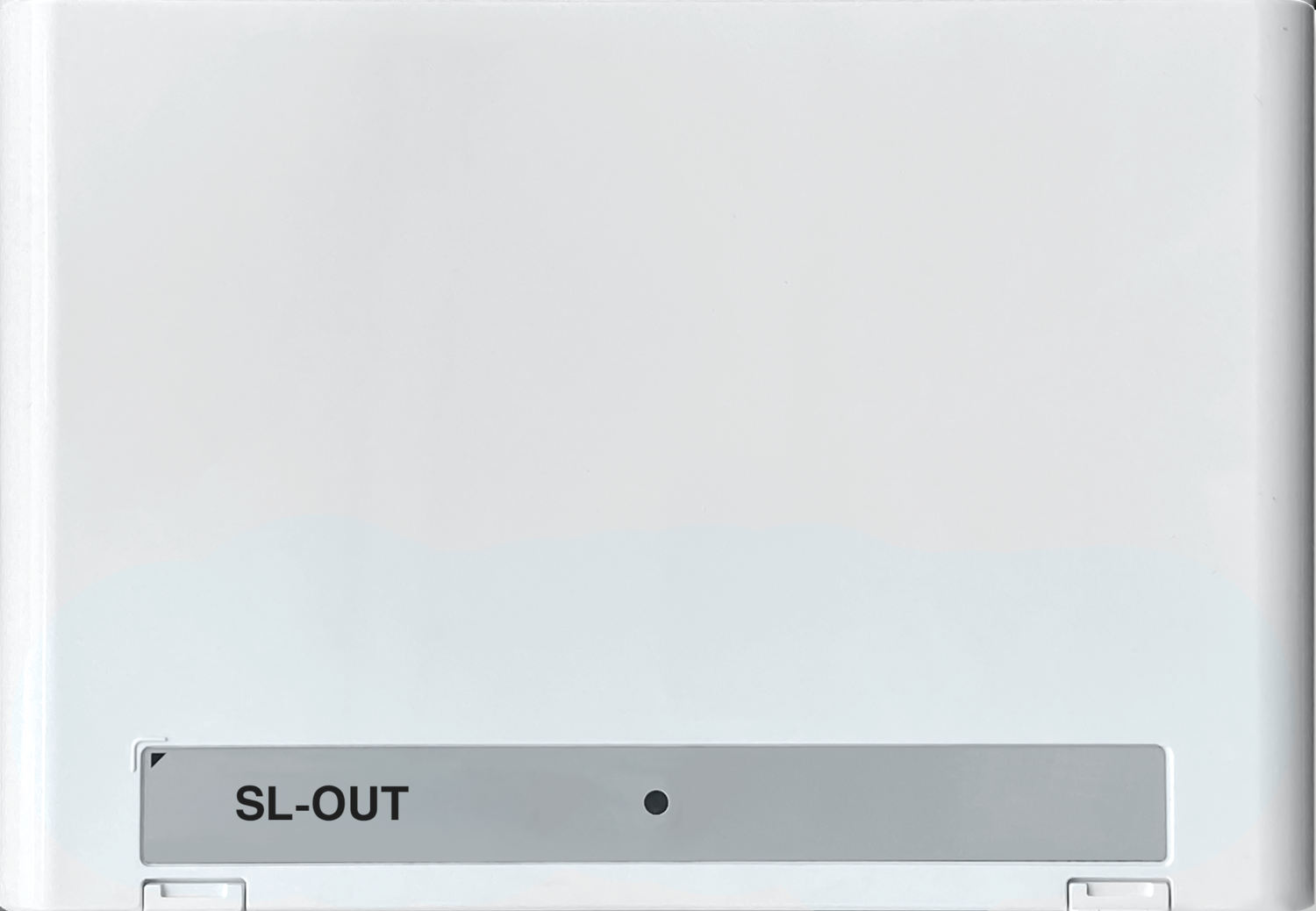

Output Module
Intelligent output module
The output module provides one monitored input and one voltage free NC/NO relay output. The device is fully compatible with all fire control equipment utilizing the Argus Vega fully digital communication protocol
FEATURES:
- Fully intelligent
- Integrated short-circuit isolator
- 250V Mains voltage switching capacity
- Max current – 8А
- Loop powered
- Monitoring input on board
- Operating temperature range: –30 °C to +55 °C

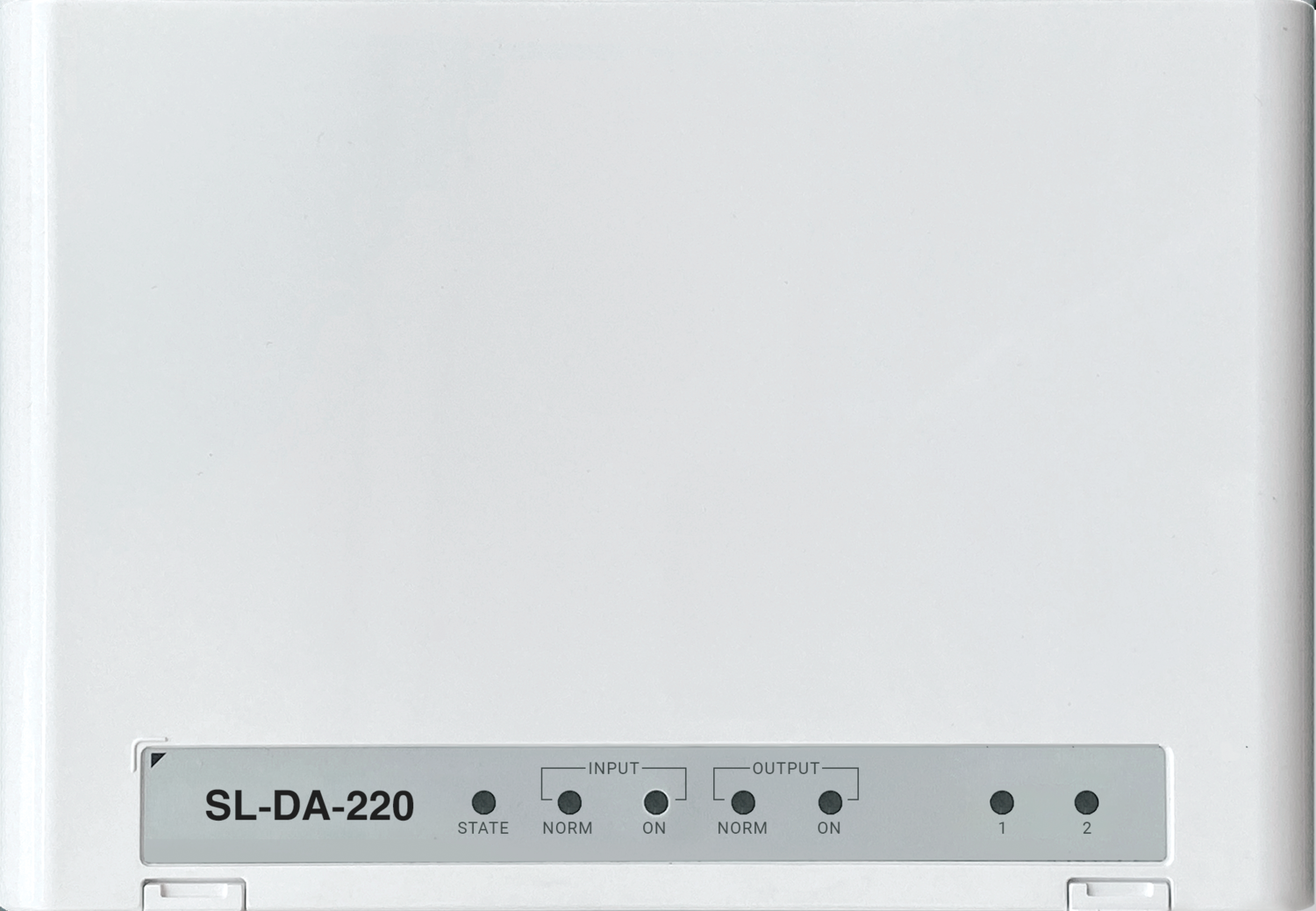

Smoke Vent Module
Smoke Vent Damper Module 220V version
The device is fully compatible with all fire control equipment utilizing the Argus Vega fully digital communication protocol
FEATURES:
- Fully intelligent
- Switch rated for ~220V
- Integrated short-circuit isolator
- Max current – 3А
- Monitors the actuator and power circuits
- 4 inputs for monitoring the state of the damper
- Operating temperature range: –30 °C to +55 °C

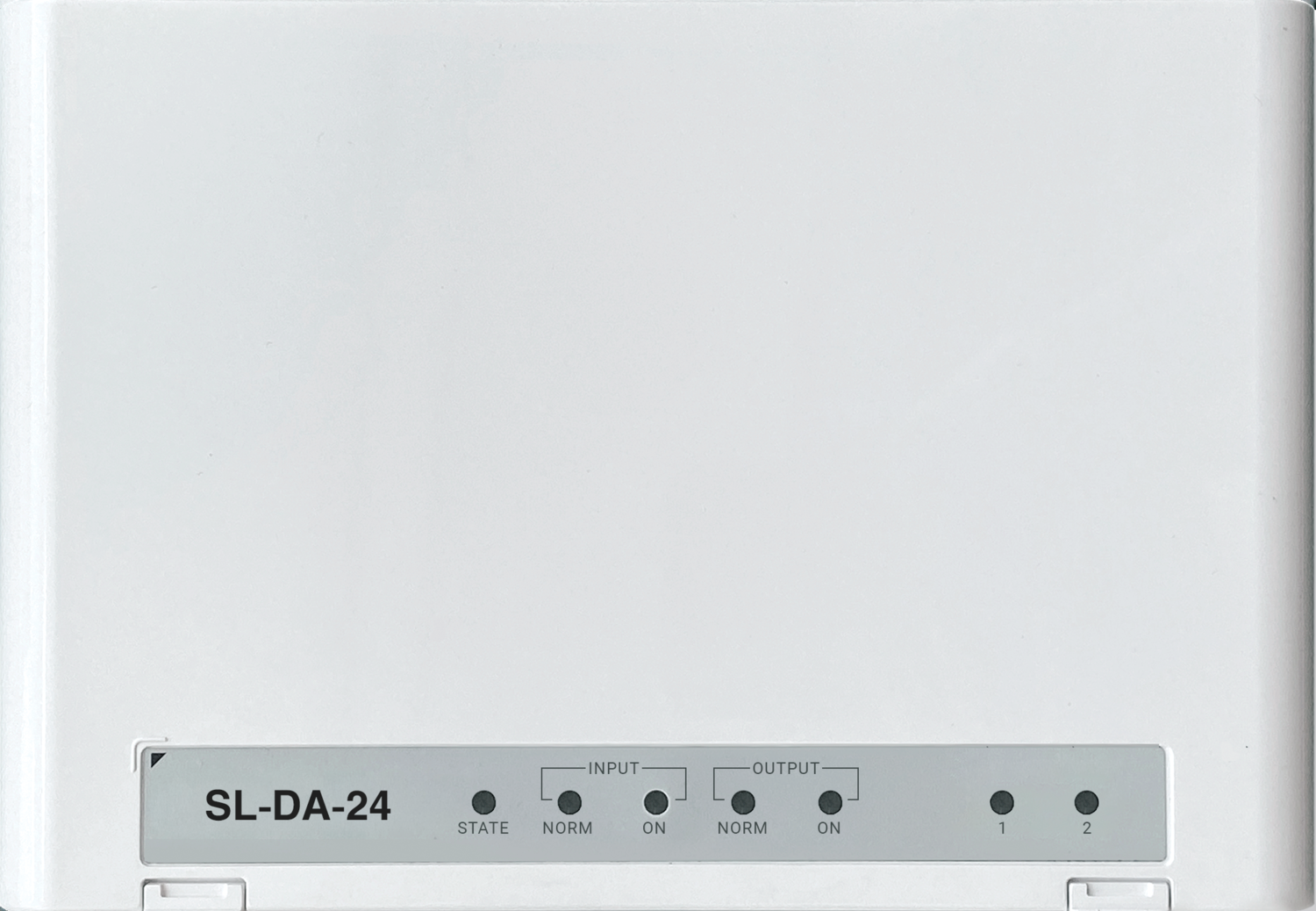

Smoke Vent Module
Smoke Vent Damper Module 24V version
The device is fully compatible with all fire control equipment utilizing the Argus Vega fully digital communication protocol
FEATURES:
- Fully intelligent
- Switch rated for =24V
- Integrated short-circuit isolator
- Max current – 3А
- Monitors the actuator and power circuits
- 4 inputs for monitoring the state of the damper
- Operating temperature range: –30 °C to +55 °C
Input Module
Intelligent single input module
The device is fully compatible with all fire control equipment utilizing the Argus Vega fully digital communication protocol
FEATURES:
- Fully intelligent
- Integrated short-circuit isolator
- Loop powered
- Single monitored input circuit
- Operating temperature range: –30 °C to +55 °C
